Network Traffic Monitoring Script

What is a Network Traffic Logger?

A Network Traffic Logger is a script used by cybersecurity professionals to monitor and record network activity. It tracks how much data is sent and received through a network interface and logs this information for analysis.

The script runs continuously and records the timestamp, the number of bytes sent, and the number of bytes received. This information is stored in a text-based log file, creating a historical record of network activity.

What is Network Traffic Monitoring?

Network traffic monitoring is the process of observing and analysing data moving across a network. It helps security and network professionals understand how systems communicate and how much traffic flows between devices.

Even simple scripts like this demonstrate the core principle behind professional monitoring tools: collecting network statistics and analysing them to understand network behaviour.

Why is Monitoring Network Traffic Important?

Monitoring network traffic helps security professionals identify patterns, detect unusual behaviour, and investigate potential threats or performance issues.

Abnormal traffic spikes may indicate malware communication, data exfiltration, or unauthorised access attempts.

Python Libraries Used in the Script

• psutil: Provides system and process utilities, including network I/O statistics.
• time: Standard Python library to handle timestamps and control logging intervals.
• os: Ensures the log file exists before logging starts (added in the improved script).

About the Script

The script is divided into two main sections:

• Monitoring function: Continuously collects network stats using psutil and records the timestamp.
• Logging: Writes network stats to a text-based log file in append mode to preserve previous data.

Python Script

# Network Traffic Monitoring Script
import psutil
import time
import os

def monitor_network(log_file="C:\\Users\\windows\\Documents\\Python\\logs\\network_log.txt", interval=1):
    """
    Continuously monitor network traffic and log it to a file.

    Args:
        log_file (str): Path to the log file.
        interval (int): Time in seconds between each log entry.
    """
    # Ensure the log file folder exists
    os.makedirs(os.path.dirname(log_file), exist_ok=True)
    if not os.path.exists(log_file):
        with open(log_file, 'w') as f:
            f.write("Timestamp | Bytes Sent | Bytes Received\n")

    while True:
        # Retrieve network I/O stats
        net = psutil.net_io_counters()
        timestamp = time.strftime("%Y-%m-%d %H:%M:%S")
        log_entry = f"{timestamp} | Sent: {net.bytes_sent} bytes | Received: {net.bytes_recv} bytes\n"

        # Append log entry
        with open(log_file, "a") as log:
            log.write(log_entry)

        # Wait before next cycle
        time.sleep(interval)

if __name__ == "__main__":
    monitor_network()

How It Works

The script runs continuously using a loop. During each cycle, net_io_counters() from psutil returns the number of bytes sent and received. time.strftime() records the timestamp.

The log file is written in append mode, and a one-second delay ensures the log is readable and does not grow too quickly.

Screenshots

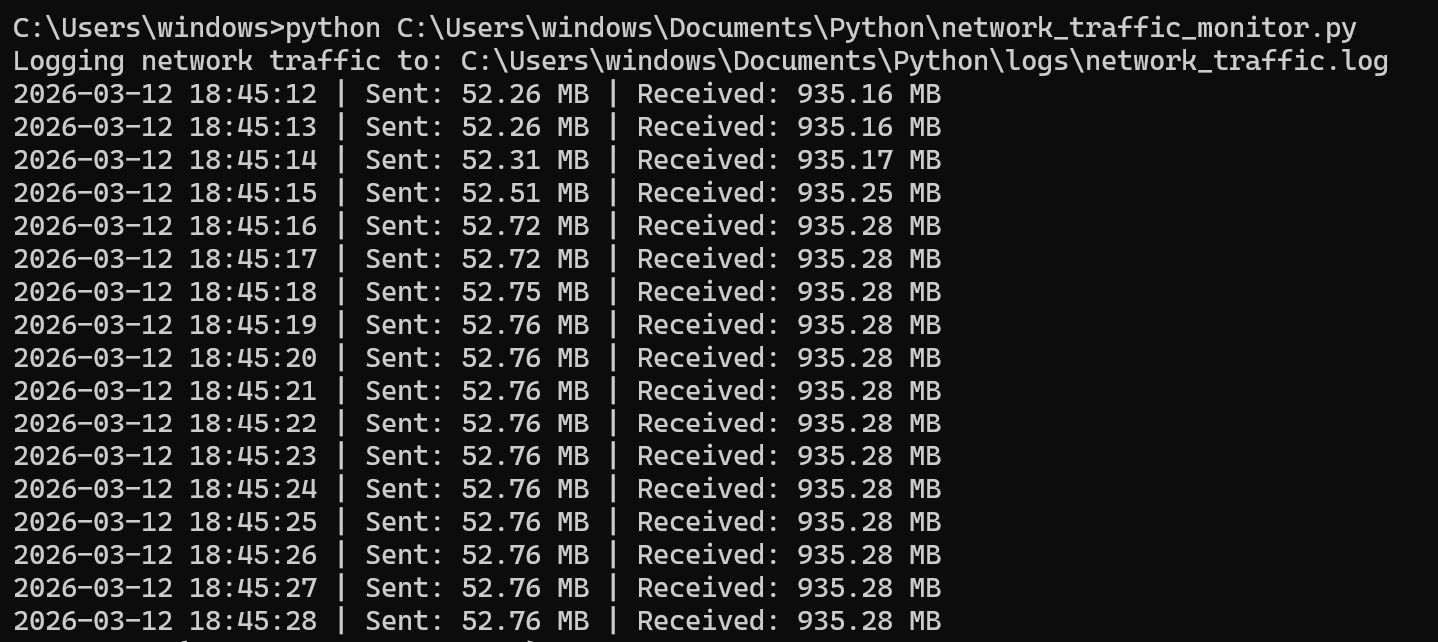

Output from CMD:

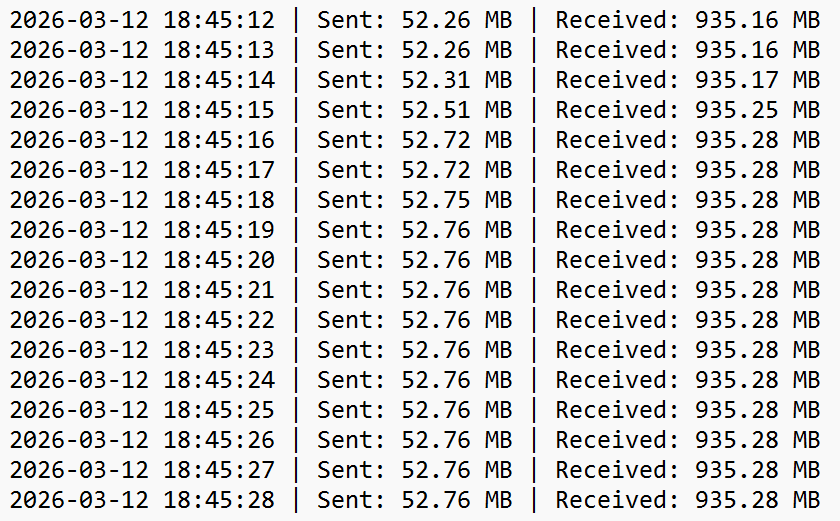

Logged file in Notepad:

Comparison to NOC Monitoring

In a Network Operations Centre (NOC), monitoring is done on routers, switches, and servers using SNMP, NetFlow, or telemetry. While this script monitors one local machine, the underlying concept—collecting and analysing network traffic over time—is the same.

Benefits of This Script

• Understand network traffic patterns
• Detect unusual or suspicious behaviour
• Investigate potential incidents
• Maintain visibility on network activity

What I've Learned

• How Python can monitor network traffic
• How psutil retrieves system network statistics
• How timestamps help track network activity
• How logging data allows patterns and anomalies to be identified
• How simple scripts teach core concepts of professional monitoring tools
